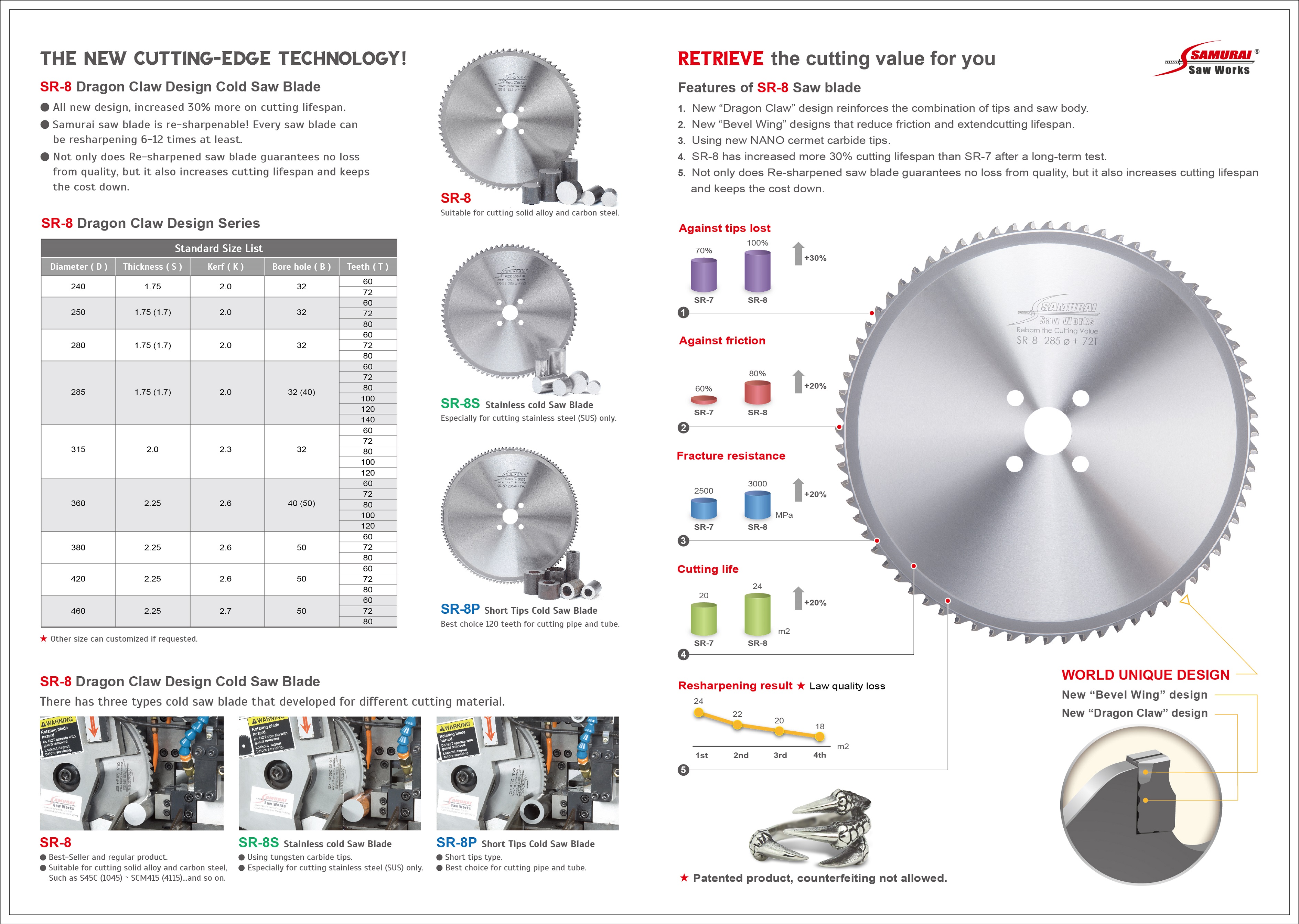

SR-8Cold Saw Blade
- Best-Seller and regular product.
- Suitable for cutting solid alloy and carbon steel.
- Such as S45C(AISI 1045), SCM415(AISI 4115)...and so on.
Feature
- New Dragon Claw design reinforces the combination of tips and saw body.
- New Bevel Wing designs that reduce friction and extend cutting lifespan.
- Using new NANO cermet carbide tips.
- SR-8 has increased more 30% cutting lifespan than SR-1 after a long-term test.
- Re-sharpened saw blade guarantees no loss from quality, but it also increases cutting lifespan and keeps the cost down.
| SR-7 | SR-8 | |
|---|---|---|
| Against Tips Lost | 70% | 100% |
| Against Friction | 60% | 80% |
| Fracture Resistance | 2500 Mpa | 3000 Mpa |
| Cutting Life | 20 m2 | 24 m2 |
| Resharpening Result | - | 1st - 242 2st - 222 3st - 202 4st - 182 |
Specification
| Diameter(D) | Thickness(S) | Kerf(K) | Bore hole(B) | Teeth(T) |
|---|---|---|---|---|
| 240 | 1.75 | 2.0 | 32 | 60 |
| 250 | 1.75(1.7) | 2.0 | 32 | 72 |
| 280 | 1.75(1.7) | 2.0 | 32 | 60 |
| 285 | 1.75(1.7) | 2.0 | 32(40) | 72 |
| 315 | 2.0 | 2.3 | 32 | 80 |
| 360 | 2.25 | 2.6 | 40(50) | 60 |
| 380 | 2.25 | 2.6 | 50 | 72 |
| 420 | 2.25 | 2.6 | 50 | 80 |
| 460 | 2.25 | 2.6 | 50 | 60 |
Install
SR-8 Dragon Claw Design Cold Saw Blade
- Trim cut must be 20mm at least.
- Clear clamping and vise exactly when installation.
- Cutting with correct cutting parameter.
